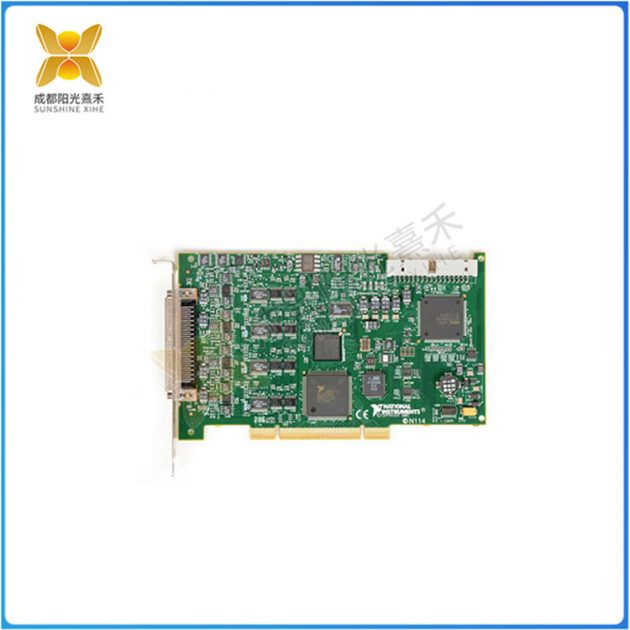

PCI-6733 高速模拟输出设备 提供多通道同步更新

NI PCI-6733是一款高速模拟输出设备，专为激励响应测试（包括声学失真测试）和仿真（如三相电源仿真）等控制和波形输出应用提供多通道同步更新。它具有以下特点：
8路模拟输出通道，每条通道均有最高输出速度1 MS/s，16位分辨率以及数字触发。
提供了8条5 V TTL/CMOS数字I/O线，2个24位20 MHz计数器/定时器，数字触发和外部时钟功能。
采用RTSI总线，可同步其他数据采集，运动和视觉产品。
总之，NI PCI-6733适用于激励反应测试以及仿真类应用，如声音失真测试及3相电源仿真，并且它还可以替代几种仪器，包括独立的比例积分微分(PID)控制器、低速任意波形发生器和函数发生器。

PCI-6733

The NI PCI-6733 is a high-speed analog output device designed to provide multi-channel synchronous updates for control and waveform output applications such as excitation response testing (including acoustic distortion testing) and simulation (such as three-phase power simulation). It has the following characteristics:
Eight analog output channels, each with a maximum output speed of 1 MS/s, 16-bit resolution, and digital trigger.
It offers eight 5V TTL/CMOS digital I/O lines, two 24-bit 20 MHz counters/timers, digital triggers, and external clock capabilities.
Using the RTSI bus, other data acquisition, motion and vision products can be synchronized.
In summary, the NI PCI-6733 is suitable for excitation response testing and simulation applications, such as sound distortion testing and 3-phase power supply simulation, and it can replace several instruments, including independent proportional integral differential (PID) controllers, low-speed arbitrary waveform generators, and function generators.

PCI-6733
